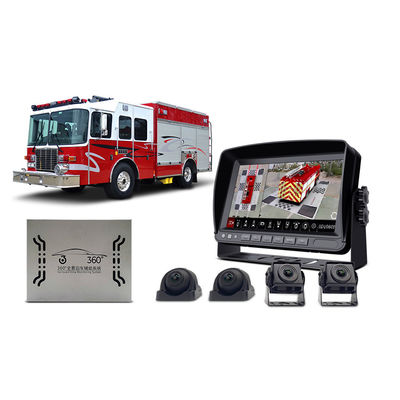

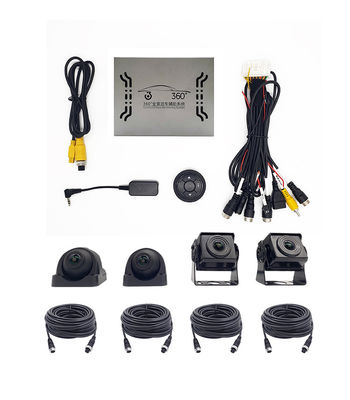

360 Car Camera System with Four AHD Cameras IPS Split Screen Monitor and IP67 Waterproof for Fleet Safety

65°*5°
MOQ
Négociable
Prix
360 Car Camera System with Four AHD Cameras IPS Split Screen Monitor and IP67 Waterproof for Fleet Safety
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Tension: 12-36V
Indice d'étanchéité: IP67
Résolution de la caméra: AHD 720P/1080P en option
Angle de vue: 120°-170° en option
Vision nocturne: Vision nocturne LED infrarouge.
Taille de l'écran: Moniteur IPS 7 pouces/9 pouces/10,1 pouces
Température de travail: -20°C à +70°C
Type d'objectif: Objectif HD grand angle
Informations de base
Lieu d'origine: Chine
Nom de marque: KING CROWN
Certification: RoHS
Conditions de paiement et expédition
Détails d'emballage: 1 an
Délai de livraison: 45 jours
Conditions de paiement: T/T, L/C
Capacité d'approvisionnement: 1000sets/mois
Description de produit
360 Car Camera Systems providing Four AHD Cameras and IPS Split Screen Monitor for Wide Viewing Angles and Comprehensive Fleet Safety
Product Overview

4 Channels AHD Truck Camera System with IPS Split Screen Monitor for Heavy-Duty Vehicles, Bus Safety Camera, Fleet Monitoring Solution

Key Features
  • Supports up to four AHD cameras for comprehensive blind spot monitoring around the vehicle
  • IPS split-screen monitor provides clear multi-view display with wide viewing angles
  • HD video transmission delivers sharp images for safer reversing and maneuvering
  • Waterproof vehicle cameras ensure reliable operation in harsh outdoor environments
  • Intelligent trigger function automatically switches to the corresponding camera view
  • Ideal fleet safety camera solution for trucks, buses, vans, RVs, and trailers
Technical Specifications
Category Specification
Product Type 4CH AHD Truck Camera System
Camera Resolution AHD 720P / 1080P Optional
View Angle 120°-170° Optional
Night Vision IR LED Night Vision
Waterproof Rating IP67 / IP68
Voltage DC 12V-24V
Lens Wide-Angle HD Lens
Screen Size 7 Inch / 9 Inch / 10.1 Inch IPS Monitor
Wired or Wireless Wired AHD System
Working Temperature -20°C to +70°C
Vehicle Compatibility Truck, Bus, Van, RV, Trailer, Construction Vehicle
Feature Highlights
360 Degree Surround Monitoring

The system supports four camera inputs positioned around the vehicle, providing drivers with a broader field of view and reducing dangerous blind spots during daily operations.

High-Definition Night Vision

Equipped with HD cameras and infrared night vision technology, the system maintains clear image quality in low-light and nighttime driving conditions.

Waterproof and Dustproof Housing

Built with rugged waterproof camera housings, the system can withstand rain, dust, vibration, and challenging outdoor environments for reliable performance.

Smart Multi-View Auto Switching

Multiple display modes including single, dual, triple, and quad split-screen views allow drivers to monitor different areas simultaneously. Trigger inputs enable automatic camera switching when reversing or turning.

Suitable for Heavy-Duty and Commercial Vehicles

Designed specifically for commercial transportation applications, the system is ideal for trucks, buses, trailers, RVs, agricultural machinery, and fleet management vehicles.

Frequently Asked Questions
What vehicles are compatible with this camera system?
The system is suitable for trucks, buses, vans, RVs, trailers, construction equipment, agricultural machinery, and other commercial vehicles operating on 12V or 24V power systems.
Do you provide OEM and ODM customization services?
Yes. VisionCarCamera offers OEM and ODM services including logo printing, packaging design, software customization, monitor size options, and camera configuration adjustments.
What is the warranty period?
Standard warranty is 12 months. Extended warranty options are available for bulk orders and long-term business partners.
What is the minimum order quantity (MOQ)?
Sample orders are accepted for testing and evaluation. MOQ requirements may vary depending on customization specifications.
Do you provide technical and installation support?
Yes. We provide installation manuals, wiring diagrams, product training, and professional technical support before and after sales.
