Commercial Vehicle Blind Area Monitoring Camera
Professional side blind zone camera system designed for logistics fleets and heavy transport vehicles to enhance urban traffic safety.
Product Overview
This industrial blind spot camera is engineered for commercial vehicles and heavy-duty transportation systems where safety, durability, and long-term stability are critical. Designed to eliminate blind zones around large vehicles, it provides reliable real-time visual monitoring for side view, front view, rear view, and auxiliary observation points.
The camera features a streamlined low-profile housing, 360° adjustable lens structure, and industrial-grade imaging solution, making it suitable for continuous operation in harsh outdoor environments. Widely used in trucks, buses, school buses, logistics vehicles, construction machinery, and special-purpose vehicles.
This is a professional vehicle vision component developed for fleet operators, system integrators, and OEM/ODM projects.
Imaging System & Video Performance
High-definition image sensor supporting AHD 1080P output, ensuring clear and stable video transmission over long cable distances. AHD technology delivers improved image sharpness, stronger noise resistance, and better compatibility with modern vehicle monitors and MDVR systems.
Wide-angle optical lens (up to 170°) effectively expands the field of view, allowing detection of pedestrians, bicycles, vehicles, and obstacles in blind areas. Multi-layer full-glass optical elements improve light transmission, reduce distortion, and maintain image clarity.
Integrated infrared night vision and intelligent fill-light design enables stable imaging under insufficient illumination, tunnels, rainy conditions, or nighttime operations.
360° Adjustable Lens Structure
Key engineering advantage with 360° adjustable lens mechanism allows precise angle calibration during installation. This design enables fine-tuning of viewing direction based on vehicle structure, mounting position, and specific blind spot requirements.
Unlike fixed-angle cameras, the adjustable structure reduces installation constraints and improves deployment efficiency across different vehicle models. Once adjusted, the lens remains stable and resistant to vibration, ensuring consistent imaging during long-term operation.

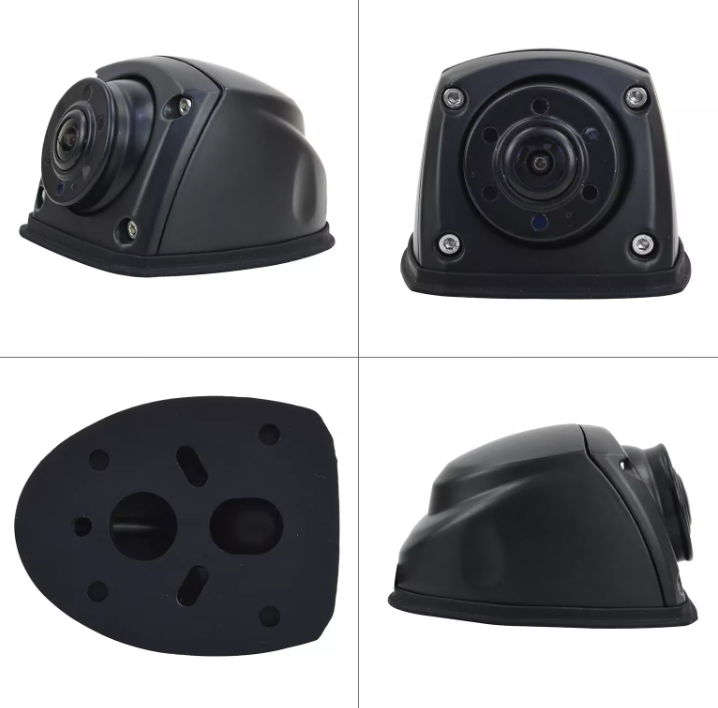

Mechanical Design & Environmental Protection
Housing manufactured from high-strength aluminum alloy, providing excellent resistance to impact, vibration, and corrosion. Metal housing significantly enhances mechanical durability and thermal stability for demanding industrial and transportation environments.
Meets IP69K waterproof and dustproof standards, enabling reliable operation under high-pressure water spray, heavy rain, mud, dust, and extreme weather conditions. Designed to withstand vehicle washing, outdoor exposure, and long-distance transportation without performance degradation.

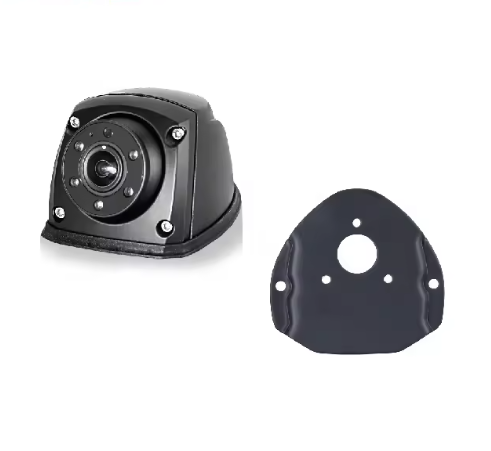

Reinforced mounting base and shock-resistant internal structure improve reliability when installed on heavy-duty trucks, buses, or construction equipment exposed to continuous vibration.
Signal Compatibility & System Integration
Supports AHD video signal output, with selected versions configurable for CVBS compatibility. Seamlessly integrates with:
- Vehicle monitors
- MDVR systems
- Android head units
- Fleet management and safety monitoring systems

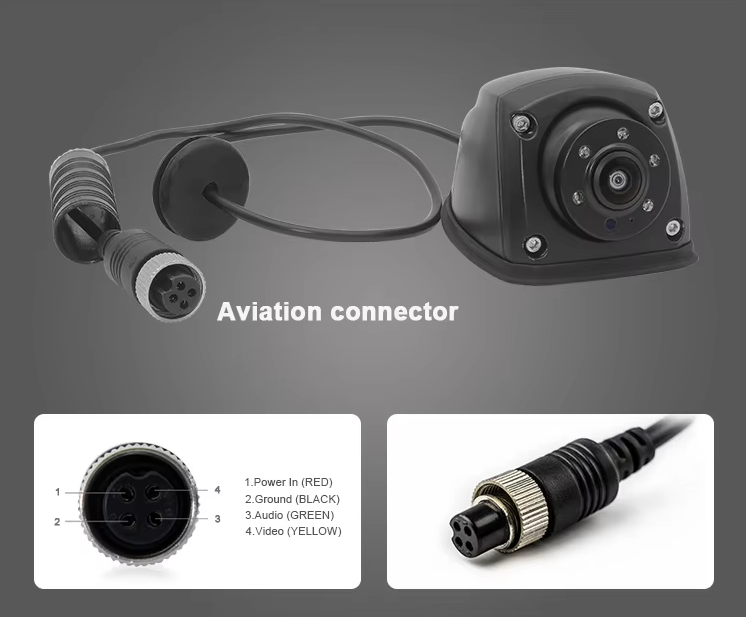

Standard aviation connectors or AV interfaces ensure secure signal transmission and simplified installation. Designed for stable performance over long cable runs, suitable for large vehicles such as trailers, articulated buses, and multi-axle trucks.
Typical Applications
Widely applied in professional vehicle vision systems:
- Side blind spot monitoring for trucks and buses
- Front and rear auxiliary cameras for large vehicles
- School bus safety monitoring systems
- Logistics and fleet vehicle safety upgrades
- Construction machinery and industrial vehicles
- Municipal and public transportation vehicles
By reducing blind zones and improving situational awareness, the camera contributes to accident prevention, driver assistance, and compliance with transportation safety standards.
Installation & Deployment
Streamlined housing design minimizes wind resistance and allows discreet side or body mounting without affecting vehicle appearance. Can be installed on vehicle sides, front bumpers, rear sections, or customized positions according to project requirements.
Adjustable lens and standardized connectors simplify installation, reduce labor time, and support large-scale fleet deployment. Suitable for both aftermarket installations and OEM integration during vehicle production.
Engineering Value
Developed as a long-life industrial component, focusing on reliability, compatibility, and environmental adaptability. Designed to support long-term operation in demanding transportation scenarios and integrate smoothly into professional vehicle safety systems.
For system integrators, fleet operators, and vehicle manufacturers, this camera provides a stable visual sensing solution that enhances safety while maintaining low maintenance requirements and high deployment flexibility.
