Aperçu /Produits/Caméra de voiture de vue d'oiseau/Commercial Vehicle Blind Zone Camera 170° Fisheye AHD HD Camera for Trucks & Buses

Commercial Vehicle Blind Zone Camera 170° Fisheye AHD HD Camera for Trucks & Buses

30 ensembles
MOQ
Négociable
Prix
Commercial Vehicle Blind Zone Camera 170° Fisheye AHD HD Camera for Trucks & Buses
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
produit: Métal résistant de la caméra 1080P AHD d'angle mort de camion logeant le grand angle IP68
Garantie: 1 an
OEM, ODM: Soutien
Capteur d'image: Puce de traitement du capteur de lumière AHD Core
résolution: 720P / 1080P
Type d'objectif: Fisheye plein verre ultra grand angle
Angle de vision: 170 °
Type de signal: AHD/PAL/NTSC
Rapport signal/bruit: ≥ 48 dB
Indice d'étanchéité: IP68
Matériau du boîtier: Corps en métal + base en plastique
Mettre en évidence:

Commercial vehicle blind zone camera

,

170° fisheye AHD camera

,

Truck bus HD camera
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: KING CROWN
Certification: RoHs
Conditions de paiement et expédition
Détails d'emballage: Boîte en carton
Délai de livraison: 45 jours
Conditions de paiement: T/T, L/C
Capacité d'approvisionnement: 1000 ensembles par mois
Description de produit

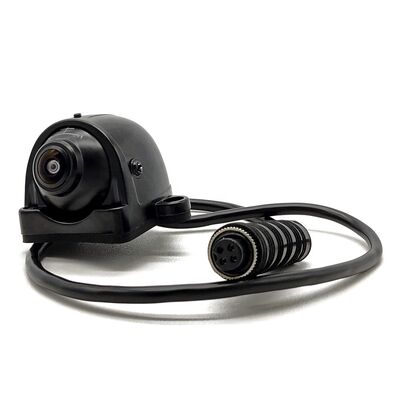

Commercial Vehicle Blind Zone Camera 170° Fisheye AHD HD Camera for Trucks & Buses
Product Overview
The AHD Blind Zone Camera for Trucks is designed to eliminate dangerous blind spots around commercial vehicles. Equipped with an advanced AHD light-sensing chip, a 170° ultra-wide fisheye lens, and a rugged metal housing, this camera delivers clear, stable images in both day and night conditions.
Built for trucks, buses, vans, and fleet vehicles, it supports 720P / 1080P high-definition output, withstands harsh outdoor environments with IP68 waterproof and shockproof protection, and operates reliably across a wide 9-36V voltage range. This camera is an ideal solution for improving driving safety, reducing accidents, and supporting fleet safety compliance.
Key Selling Points
  • 170° Ultra-Wide Blind Zone Coverage - Effectively reduces side and rear blind spots
  • AHD HD Output (720P / 1080P) - Clear, low-latency video transmission
  • Full Metal Body Design - Strong resistance to vibration, impact, and weather
  • True Color Day & Night Vision - Clear imaging without infrared glare
  • IP68 Waterproof & Shockproof - Reliable performance in rain, dust, and harsh roads
  • Wide Voltage Compatibility (9-36V) - Suitable for trucks, buses, trailers, and fleets
Technical Specifications
Product ModelMR-2406217
Product NameBlind Zone Camera for Trucks
Image SensorAHD Core Light Sensor Processing Chip
Resolution720P / 1080P
Lens TypeFull Glass Fisheye Ultra Wide Angle
Viewing Angle170°
Signal TypeAHD / PAL / NTSC
Signal-to-Noise Ratio≥48dB
Waterproof RatingIP68
Shockproof Level6.8G
Housing MaterialMetal Body + Plastic Base
Color BrightnessAutomatic Correction
Connector TypeAviation / AV Connectors
Operating Voltage9-36V DC
Compatible DisplaysAndroid Large Screen, Small Screen Monitor, OEM Head Unit
Feature Highlights
  • Advanced AHD Imaging Technology - Stable HD signal with long-distance transmission
  • True Color Night Vision - Clear visibility in low-light urban and highway conditions
  • Full Metal Structure - Enhanced durability for commercial vehicle use
  • Compact & Lightweight Design - Easy installation without affecting vehicle balance
  • Non-Destructive Installation - Simple mounting for side, rear, or blind spot positions
Applications
  • Heavy-duty trucks
  • Buses & coaches
  • Logistics & delivery fleets
  • Construction vehicles
  • Special-purpose and municipal vehicles
Ideal for blind spot monitoring, lane change assistance, parking safety, and fleet risk reduction.
Frequently Asked Questions
Q1: Is this camera compatible with MDVR systems?
Yes. The camera supports AHD signal output and works seamlessly with most MDVRs and vehicle monitors.
Q2: Can it be installed on the side or rear of a truck?
Absolutely. It is suitable for side view, rear view, and blind zone monitoring.
Q3: Does it support night vision without infrared LEDs?
Yes. The starlight-level sensor provides true color night vision without IR reflection.
Q4: Is the camera suitable for harsh outdoor environments?
Yes. With IP68 waterproofing and a full metal body, it performs reliably in rain, dust, and vibration.
Q5: What voltage systems does it support?
It supports a wide DC 9-36V input, ideal for commercial vehicles.
Brand & OEM Advantages (VisionCarCamera)
  • Over 20 years of experience in automotive camera manufacturing
  • Strong OEM & ODM customization capabilities
  • Certified with ISO9001, CE, RoHS standards
  • Stable supply for global fleet, distributor, and integrator partners
  • Professional support for product customization, branding, and bulk orders
