Heavy Duty 6-Sensor Parking Radar System with Distance Display and Audio Alert for Truck Car

30pts
MOQ
negotiable
Prix
Heavy Duty 6-Sensor Parking Radar System with Distance Display and Audio Alert for Truck Car
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Alimentation: DC12V
Tension de fonctionnement: 9-36V
Type d'alarme: Ça va aller!
Position: À l'arrière / devant
Puissance maximale: 2,5 W
Matériel: Métal
Compatibilité: Universel
Mettre en évidence:

heavy duty parking radar system

,

6-sensor parking radar with display

,

truck car parking sensor with audio alert

Informations de base
Lieu d'origine: Shenzhen, Chine
Nom de marque: KINGCROWN
Certification: RoHS
Numéro de modèle: BG-S6S-AAAA
Conditions de paiement et expédition
Détails d'emballage: Exporter le package standard
Délai de livraison: 45 jours
Conditions de paiement: , T / t, l / c
Capacité d'approvisionnement: 1000sets / mois
Description de produit
Heavy Duty 6-Sensor Parking Radar System with Distance Display and Audio Alert for Truck Car
Product Overview

The Heavy Duty 6-Sensor Parking Radar System is engineered to provide superior safety and precision for heavy-duty vehicles such as trucks, vans, buses, and SUVs. Designed to assist with reversing and parking in tight spaces, this system utilizes 6 ultrasonic sensors to deliver comprehensive coverage, ensuring obstacles are detected from multiple angles.

With a clear LED distance display and audible alerts, the system provides real-time feedback to help prevent collisions, ensuring safe parking and maneuvering. Whether you're parking in busy urban areas, loading docks, or tight parking spots, this system enhances your vehicle's reversing capabilities, reducing the risk of accidents and protecting both the vehicle and nearby pedestrians or property.

Product Characteristics
  • 6 Ultrasonic Sensors: Provides full 360° detection coverage, ensuring every angle around the vehicle is monitored for obstacles including small objects or low barriers.

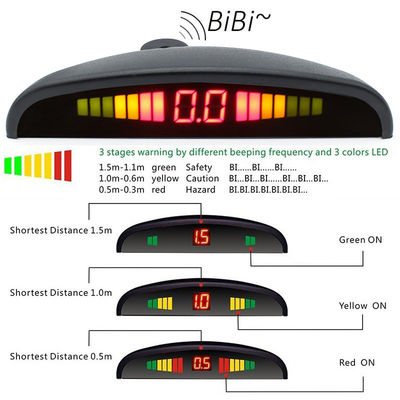

  • LED Distance Display: Clearly shows distance to obstacles with color-coded system (green, yellow, red) representing proximity in real-time.
  • Audible Alerts: Progressive audio warnings that increase in frequency as vehicle approaches obstacles.
  • Waterproof and Weatherproof Sensors: IP67 rating ensures reliable performance in all weather conditions including heavy rain or snow.
  • Wide Compatibility: Compatible with heavy-duty trucks, vans, buses, SUVs, RVs, and commercial vehicles operating on 12V DC power supply.
  • Adjustable Warning Volume: Customizable audio feedback to ensure clear warnings in any environment.
  • Easy Installation: No drilling required in most vehicles with complete wiring, connectors, and installation manual included.
Technical Specifications
Parameter Specification
Power Supply DC12V
Weight 0.65KG
Current Consumption 20mA-200mA
Operating Temperature -40°C to +80°C
Alarm Volume 70-80dB (30cm)
Working Voltage 9-36V
Alarm Type Bi Bi Buzz
Maximum Power 2.5W
Probe Size 22×20mm
Applicable Vehicle Universal car
Waterproof Rating IP67
Applications
  • Trucks and Commercial Vehicles: Enhances reversing safety in busy urban areas, loading docks, and tight parking spots.
  • Buses and Public Transport: Improves parking safety in urban areas and reduces accident likelihood in parking lots.
  • Heavy-Duty Construction Equipment: Improves maneuverability in construction sites and warehouses with limited visibility.
  • Vans and SUVs: Ensures safe reversing and parking in tight spaces for both personal and commercial use.
  • Fleet Vehicles: Provides safety assurance for entire fleets operating in urban or crowded environments.
Customer Support & Quality Assurance
  • 1-Year Warranty: Covers defects in materials and workmanship for peace of mind.
  • 24/7 Customer Support: Dedicated team available for installation assistance and troubleshooting.
  • Easy Installation: Includes all necessary components with detailed installation guide for straightforward setup.
